Cold Jet — Dry Ice Production PE 80 Dry Ice Pelletizer

Low-Volume Production

The Cold Jet PE 80 is a compact, low-volume dry ice pelletizer that turns liquid CO₂ into up to 176 lb (80 kg) of fresh dry ice pellets per hour, in diameters from 1.7mm to 16mm. Three barrels keep production continuous, and it runs from fixed liquid CO₂ tanks, micro bulk tanks, or dewars — no infrastructure upgrade required.

Dimensions (L × W × H)
600 × 1000 × 1400 mm
Weight
441 lb
Dry Ice Output
176 lb/h

$42,600

Select Package


Qty
1
  • 24/7 Technical Support
  • 12-Month Warranty
Americas
At a Glance

Why Choose the PE 80 for Low-Volume Dry Ice Production?

The PE 80 is built for businesses that need a regular, low-volume supply of dry ice without an oversized machine or new infrastructure. Instead of paying for deliveries that sublimate in transit, you produce fresh pellets on demand for blasting, transport cooling, or lab use. Three barrels, a closed chamber, an industrial PC, and a stainless steel enclosure come standard, and it is prepared for CO₂ recovery as volume grows.

Dimensions (L × W × H)
600 × 1000 × 1400 mm
Weight
441 lb
Dry Ice Output
176 lb/h
Power Supply
400 V AC (50 Hz); 480 V AC (60 Hz); 3 × 220 V AC (50 Hz)

CE marked — designed to comply with the EC Declaration of Conformity for Machinery.

Features

What Makes the PE 80 Stand Out?

The PE 80 includes as standard the features that make low-volume production reliable: continuous output, simple operation, and a small, mobile footprint.

80

Interactive 3D

  1. Performance

    Three Production Chambers

    Three injection valves feed three compression chambers, so pellets extrude from three plates at once with built-in redundancy.

    Lead Feature
  2. Efficiency

    Prepared for CO₂ Recovery

    A pressure compensation outlet connects directly to a Cold Jet RE-CO2 80, which turns vented revert gas back into liquid CO₂.

  3. Operation

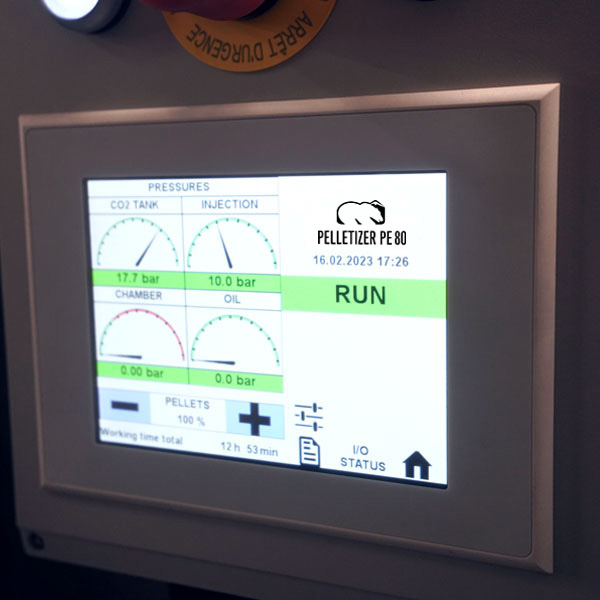

    Industrial PC Touchscreen

    Monitor tank, injection, chamber and oil pressures, adjust pellet output, track run hours, and read alarms from one display.

  1. Safety

    Automatic Protection Systems

    Stops automatically on low voltage, wrong phase order, a blocked gas outlet, or a closed CO₂ supply — and drains the supply line on shutdown.

  2. Design

    Closed Chamber System

    Liquid CO₂ is fed into a closed main pelletization chamber before being metered into the compression chambers.

  3. Construction

    Stainless Steel Enclosure

    Stainless steel enclosure with a bottom plate protects internal components and wipes clean with a stainless-safe degreaser.

  4. Design

    Casters or Wall Mount

    Caster wheels move it around your facility, or recess and fix it to a wall to save floor space.

  5. Performance

    Five Pellet Diameters

    Swap extrusion plates for 1.7–2.2mm micro-pellets, 3mm blasting pellets, or 8–16mm nuggets for longer-lasting cold chain cooling.

  6. Infrastructure

    Flexible CO₂ Supply

    Runs from fixed liquid CO₂ tanks and micro bulk tanks, with dewar connection possible where a liquid vessel isn't an option.

  7. Operation

    Minimal User Maintenance

    Planned preventative maintenance at 3, 6, 12 and 24 months (600–4,800 hours) keeps it running reliably.

Specifications

What Are the PE 80 Specifications?

All specs from the official Cold Jet PE 80 spec sheet. Use the toggle to switch between Imperial and Metric units.

Model: PE 80 — Low-volume dry ice pelletizer, up to 80 kg/h
SpecificationImperial
Dimensions (L × W × H)600 × 1000 × 1400 mm
Weight441 lb
Machine size with transport/storage frame650 × 1200 × 1500 mm
Dry Ice Output176 lb/h
Power Supply400 V AC (50 Hz); 480 V AC (60 Hz); 3 × 220 V AC (50 Hz)
Accessories

Which Accessories Fit the PE 80?

The PE 80 works with four Cold Jet accessories that fit your installation and output: a Dry Ice Hood (PE800001) that cuts sublimation losses by up to 10%, a 5 m Degassing Hose (2N0916) that vents CO₂ outside the building, a Pressure Reducer Kit (TP700000) for cylinder-battery supply, and a Dewar Adapter (4D0216) for connecting a liquid CO₂ dewar.

Installation & Production Accessories

  • Dry Ice Hood

    PE800001

    Mounts between the pelletizer outlet and an insulated box — cuts sublimation losses by up to 10% and reduces humidity ingress

    PE 80
  • Degassing Hose

    2N0916

    5 m degassing hose with 1 in cam couplings (female BSP, with 1 in NPT adapter) to vent CO₂ outside the building

    PE 80
  • Pressure Reducer Kit

    TP700000

    For cylinder-battery supply — shut-off valve, inlet/outlet gauges and adjustable 16–18 bar outlet to the PE 80

    PE 80
  • Dewar Adapter

    4D0216

    CGA-320 to CGA-622 adapter for connecting a liquid CO₂ dewar

    PE 80

* Contact Cold Jet for accessory pricing and help sizing your liquid CO₂ supply, piping and exhaust line.

24/7 Technical Support

More than 70 people in Cold Jet's customer service organization, full spare parts inventory in every region, and support 24/7, 365 days a year — plus new operator training and help with complex installations.

Warranty & Support

What Warranty and Support Does the PE 80 Include?

12-Month Coverage

The PE 80 is covered for 12 months from delivery once the delivery report is signed and returned within 20 days. Repairs must be carried out by Cold Jet technicians or Cold Jet-trained personnel using genuine Cold Jet parts. Extended warranty programs and service agreements are available.

View full warranty & support details
Applications

What Customers Use the PE 80 For

The six uses named on the PE 80 spec sheet — from contract cleaners and manufacturers running multiple blasters to life sciences, laboratories, food processing and delivery, and automotive restoration.

  • Operator pouring a fresh scoop of dry ice into a hopper

    Production For Blasting

    Companies that clean with dry ice blasting can produce fresh, high-density 3 mm pellets onsite and on demand. Making blasting media in-house eliminates delivery fees, minimum orders, and sublimation loss in storage, lowers the cost per pound of dry ice, and gives operators denser pellets that clean faster at the nozzle.

  • Industrial Bakery Dough Production Line

    Temperature Controlled Fermentation

    Wineries, breweries, and bakeries use dry ice to hold must, wort, and dough at target temperature during fermentation. As a food-grade cooling medium, it delivers about three times the cooling power of water ice, adds no water to the batch, and releases CO₂ gas that blankets the product against oxygen, leaving no residue behind.

  • Lab tech removing biopharmaceutical product from dry ice

    Biopreservation

    Cell therapies, vaccines, and biological samples must stay deeply frozen from manufacture to administration. Onsite dry ice production gives life sciences organizations a fresh, reliable supply in the format they need, and integrated dosing systems can place a pre-programmed quantity directly into each shipper, so temperature-sensitive material is protected without handling or supplier delays.

Service Agreement · IoT Platform

Cold Jet CONNECT® Intelligence & Protection

Connect Analytics delivers real-time operational intelligence and remote diagnostics. Connect Care and Connect Enterprise add machine coverage including extended warranty, parts discounts, onsite maintenance, and more.

Comes with your machine

Nothing to buy. What you get depends on the machine.

Real-Time Intelligence

Included

No subscription to buy — it ships with the machine.

  • Access live operational data including dry ice usage, feed rates, machine utilization, and daily runtimes — with pre-configured and custom job reporting.

Remote Diagnostics

Included

No subscription to buy — it ships with the machine.

  • Operational data is sent directly to Cold Jet technicians to quickly identify and resolve issues, with remote management of application 'Recipes' and full service history.

Additional Protections & Discounts

Included

No subscription to buy — it ships with the machine.

  • Extend your manufacturer warranty up to 3 years total, receive 10% off all parts and accessories, get an uptime critical spare parts kit, and more.
Explore Cold Jet CONNECT
FAQ

Have Questions About the PE 80?

Ready to Evaluate?

Ready to Produce Your Own Dry Ice?

Our dry ice specialists will review your liquid CO₂ supply, power, and weekly dry ice demand — and run a free ROI analysis — before you buy.
