DS500 E

Cold Jet — Dry Ice Production DS500E Dry Ice Slice Production & Dosing

All-in-One, Fully Electric

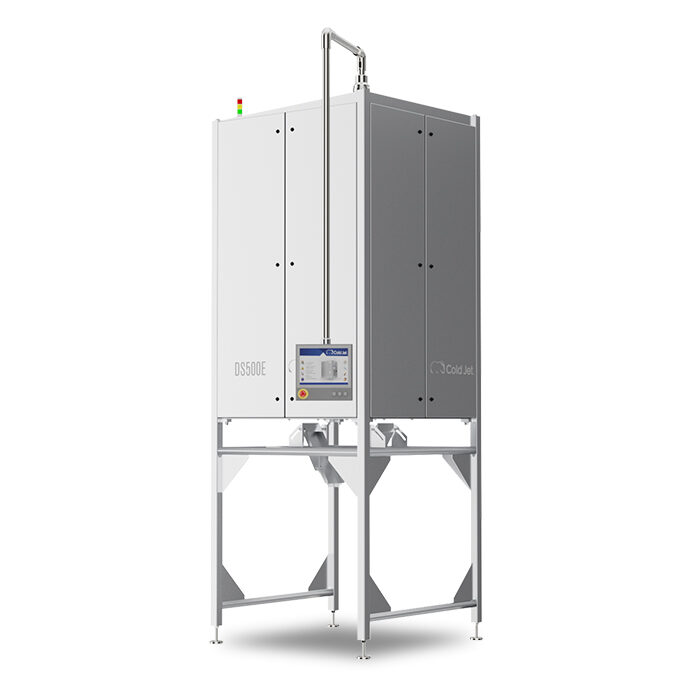

The Cold Jet DS500E turns liquid CO₂ into dry ice slices and doses them straight into your packaging — up to 1,102 lb (500 kg) per hour at the push of a button. Fully electric, with two press heads and no pelletizer or reformer required, it replaces manual block sawing on the packing line.

Dimensions (L × W × H)
52.5 × 52.5 × 95 in
Weight
2888 lb
Dry Ice Output
1102 lb/h
Power Supply
3 × 400 V AC (50 Hz)

Request pricing

Select Package


Qty
1
  • 24/7 Technical Support
  • Fully Electric — No Hydraulics

Documents

Americas
At a Glance

Why Choose the DS500E for Dry Ice Slice Dosing?

The DS500E is built for packing lines that need dry ice slices exactly where the product is packed. It produces and doses slices from liquid CO₂ in one step, so there is no pelletizer, reformer, or manual block sawing. Operators program slice weight from 0.25 to 1 kg and dosing frequency on a 15.6 in touchscreen, and sub-cooling delivers 12–14% better liquid CO₂ conversion than other systems.

Dimensions (L × W × H)
52.5 × 52.5 × 95 in
Weight
2888 lb
Dry Ice Output
1102 lb/h
Power Supply
3 × 400 V AC (50 Hz)
Noise Level
≤ 75 dB(A)
Features

What Makes the DS500E Stand Out?

Every DS500E turns liquid CO₂ into dense, consistent dry ice slices and doses them straight into your packaging — automatically and without hydraulics.

DS500 E

Interactive 3D

  1. Performance

    Liquid CO₂ to Slices, No Stopovers

    Produces and doses dry ice slices in one system — no need to combine a pelletizer and a dry ice reformer.

    Lead Feature
  2. Design

    Fully Electric

    Requires no hydraulic pressure to produce dry ice slices of optimum density.

  3. Operation

    Doses Directly Into Packaging

    Program slice size and dosing frequency, then dose straight into boxes or parcels on your existing production line.

  1. Performance

    Two Slice Press Heads

    Two press heads and cylinders provide optimal dosing capacity, speed, and accuracy.

  2. Operation

    Automatic Slice Weight Adjustment

    Vary slice weight from 0.5 to 2.2 lb (0.25–1 kg) on the HMI and save predefined weights as recipes.

  3. Efficiency

    Servo Motion Control

    Fast, precise servo-driven motion control minimizes dry ice waste with every dose.

  4. Safety

    No More Sawing Blocks

    Eliminates the need — and the dangers — of manually sawing dry ice blocks into slices.

  5. Operation

    Fully Automated, One-Button Operation

    Produce liquid CO₂ into slices at the push of a button, with minimal operator involvement.

  6. Construction

    Moisture-Free Stainless Enclosure

    Protects machine parts from moisture and keeps the noise level below 75 dB(A).

  7. Operation

    15.6-in Multilingual Touchscreen

    An industrial PC with a 15.6 in multi-touch display, viewable from any desktop worldwide over your LAN or the internet.

  8. Integration

    Ready for Plant Integration

    Connect to your control system with a simple remote start/stop button or a BUS/Ethernet connection.

Applications

Who Uses the DS500E?

From salmon export to parcel shipping, the DS series doses dry ice slices directly into packaging on the production line.

  • DS1000 Salmon Conveyor

    Fish Export

    Seafood exporters use dry ice to replace most or all of the water ice in an export box. Dosed on fillets or on a reduced layer of flake ice, it supercools the pack, holds temperature for up to 144 hours, removes melt water, and cuts about 4 kg from each fresh fillet box.

  • Dry ice pellets layered into totes of meat on a processing trim line

    Meat Processing

    Meat and poultry processors use dry ice pellets to rapidly chill product on trim lines and in mixers, grinders, and blenders, where friction adds heat. Dry ice sublimates instead of melting, so it adds no water, drip loss, or leachate, and onsite production ensures fresh, high-density ice is always ready for every shift.

  • Scooping dry ice into a bag for food shipping

    Food Cold Chain

    Food processors, meal kit companies, and home delivery services use dry ice to hold fresh and frozen food at temperature from packing line to doorstep. It delivers about three times the cooling power of water ice at a fraction of the weight, and onsite production means fresh dry ice at a known cost per pound.

Specifications

What Are the DS500E Specifications?

All specs from the official Cold Jet DS500E spec sheet. Use the toggle to switch between Imperial and Metric units.

Model: DS500E — All-in-one dry ice slice production and dosing system, up to 500 kg/hr
SpecificationImperial
Dimensions (L × W × H)52.5 × 52.5 × 95 in
Weight2888 lb
Shipping Weight2954 lb
Shipping Crate Size (L × W × H)64.5 × 56.5 × 104 in
Dry Ice Output1102 lb/h
Upgrades

Which Upgrades Are Available for the DS500E?

Upgrades & Line Integration

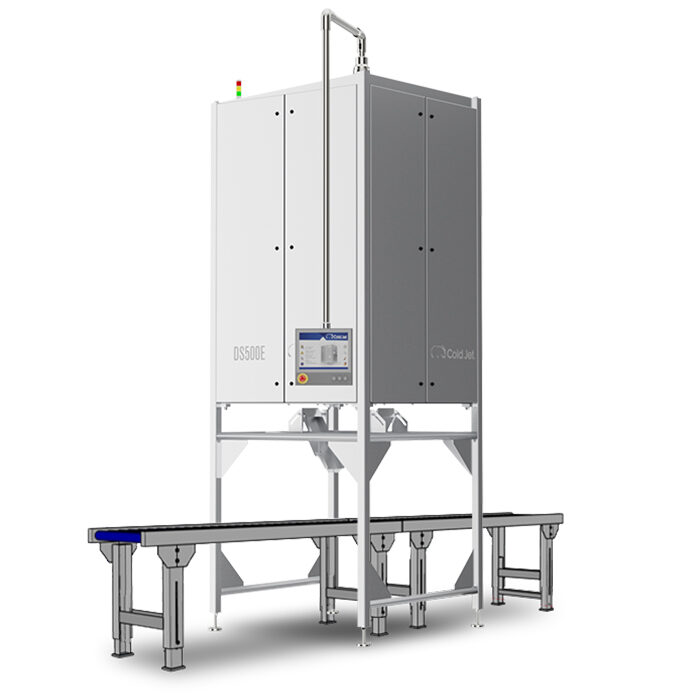

  • Conveyor Belts & Adjustment Accessories

    Custom conveyor belt solutions for fully automated dry ice slice dosing lines

    DS500E
  • Machine Stand

    Stand under the DS500E (not included as standard)

    DS500E
  • Maintenance Plan

    Schedule a safety and preventative maintenance inspection

    DS500E

* Contact Cold Jet for pricing. Conveyor belts and the stand under the machine are not included as standard.

Cold Jet CONNECT

Cold Jet CONNECT® Smart Equipment Intelligence

Remote monitoring, diagnostics, and corrective action from any location — keeping your DS500E producing and dosing slices.

Comes with your machine

Nothing to buy. What you get depends on the machine.

Remote Monitoring

Included

No subscription to buy — it ships with the machine.

  • View the DS500E's full touchscreen display from any desktop worldwide when it is connected to your LAN or the internet.

Remote Diagnostics

Included

No subscription to buy — it ships with the machine.

  • Diagnose faults and implement corrective action from any location, reducing the need for onsite service visits.

Proactive Service

Included

No subscription to buy — it ships with the machine.

  • Proactive customer service, backed by 16 service centers in 11 countries, keeps the DS500E up and running.
Explore all CONNECT® plans and specifications

24/7 Technical Support

More than 70 people in Cold Jet's customer service organization, full spare parts inventory in every region, and support 24/7, 365 days a year — plus new operator training and help with complex installations.

Warranty & Support

What Warranty and Support Does the DS500E Include?

Extended warranty programs and complete service agreement offerings are available for the DS500E.

View full warranty & support details
FAQ

Have Questions About the DS500E?

Ready to Evaluate?

Ready to Dose Dry Ice Directly Into Your Packaging?

Our dry ice specialists will review your liquid CO₂ supply, box volumes, dosing weights, and line layout — and calculate your savings with our CAPEX and OPEX calculator.

Compare Models
