Controlled From Your Pelletizer
Start, stop, and operate the RE-CO2 320V2 directly from your Cold Jet pelletizer's HMI screen.

The Cold Jet RE-CO2 320V2 brings carbon capture to your dry ice production. It recovers up to 705 lb (320 kg) of vented CO₂ per hour, runs directly from your Cold Jet pelletizer's control panel, and scales modularly — one unit per pelletizer chute — to cut liquid CO₂ costs by up to 40%.
Select Package
Documents
The RE-CO2 320V2 captures the revert gas your pelletizer vents, converts it back into liquid CO₂, and recycles it into more dry ice. Version 2 lets your Cold Jet pelletizer and recovery unit communicate, so you start and run recovery from the pelletizer's HMI. With multiple units, a smart flow feature distributes CO₂ gas for maximum efficiency — one unit per chute, two for a PR750H.
Covers installations of up to two RE-CO2 320V2 units per pelletizer; contact Cold Jet for larger systems.
Version 2 upgrades every part of the system — connections, electrical, motors, cooling, oil management, and buffer tank.

Interactive 3D
Start, stop, and operate the RE-CO2 320V2 directly from your Cold Jet pelletizer's HMI screen.
With one recovery unit per pelletizer chute, smart flow distributes CO₂ gas efficiently across multi-unit installations.
Recovers up to 705 lb (320 kg) of CO₂ per hour at continuous gas feed above 0.5 bar.
Efficient liquefaction keeps the energy cost of every recovered ton of CO₂ low.
Reduce annual liquid CO₂ costs by up to 40% and increase dry ice output by up to 70% without extra liquid CO₂.
A new frame and cover optimize CO₂ gas flow; the CE-approved tank sits on top of the unit.
An upgraded electrical cabinet with superheat controller, 24 V DC coils, and additional temperature sensors.
An upgraded two-stage oil separator, oil regulator, and refrigerant liquid receiver with compressor-cooling bypass valve.
Claw coupling motors and durable, high-quality cooling fans improve long-term reliability.
Convenient access plugs accept the Warm Weather Kit for operation up to 104°F (40°C).
Exceptionally compact compared with other options, and tailored to your specific installation.
Recovered liquid CO₂ feeds the pelletizer line — never the supplier's bulk tank.
Built for mid- to high-volume Cold Jet dry ice plants running PR350H and PR750H pelletizers.

Dry ice pelletizers vent roughly half of the liquid CO₂ they use as revert gas. Cold Jet RE-CO2 systems capture that gas, reliquefy it, and return it to the pelletizer — never the bulk tank. Producers who sell dry ice or make it for their own blasting cut liquid CO₂ costs by up to 40% and make up to 70% more dry ice.
Specs from the RE-CO2 320V2 spec sheet, user manual, and pre-installation guide. Use the toggle to switch between Imperial and Metric units.
| Specification | Imperial |
|---|---|
| Dimensions (L × W × H) | 107 × 52 × 89 in |
| Weight | 4796 lb |
| Buffer Tank Size (L × W × H) | 83.6 × 52 × 62.5 in |
| Buffer Tank Weight | 717 lb |
| Machine + Buffer Tank Size (L × W × H) | 107 × 52 × 147.7 in |
The Cold Jet RE-CO2 320V2 fits eight accessories. A 2 in pressure relief valve (2C0298) connects it to a PR350H and a 3 in valve (2K0604) to a PR750H, while PR350H and PR750H units built before July 11, 2024 also need the updated safety valve (4N1495). A Warm Weather Kit maintains performance up to 104°F (40°C). External hoses, a line controller and HMI for multi-unit control, a spare parts kit, and an optional silencer complete the system.
For use with a PR350H (requires a 3 in to 2 in adapter)
RE-CO2 320 v2 · PR350HFor use with a PR750H; must be installed horizontally
RE-CO2 320 v2 · PR750HReplacement liquid CO₂ safety valve for PR350H/PR750H units built before July 11, 2024
RE-CO2 320 v2 · PR350H · PR750HMaintains performance above 30°C (86°F), up to 40°C (104°F)

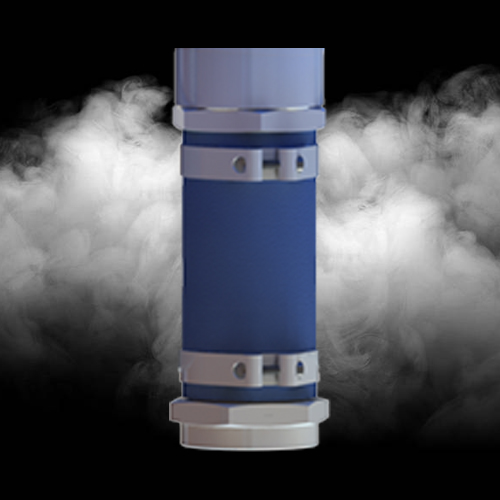

RE-CO2 320V2Hoses to transport CO₂ gas to your recovery system
RE-CO2 320V2Add a line controller and HMI for multi-unit control

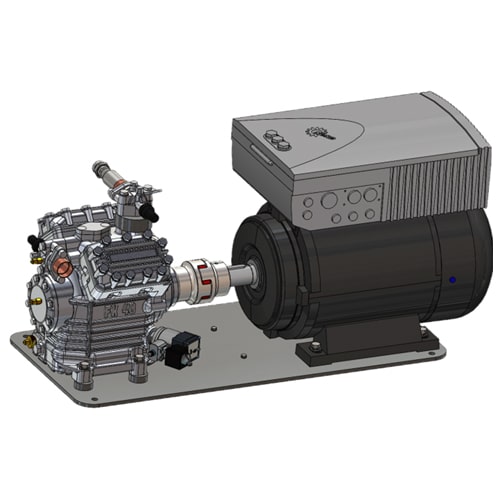

RE-CO2 320V2Optimize preventive maintenance
RE-CO2 320V2Optional silencer for the 1½ in pressure relief outlet
RE-CO2 320V2* Contact Cold Jet for pricing and help sizing your recovery installation.
A Cold Jet technician handles final commissioning, start-up, and training on site. After that, more than 70 people in Cold Jet's customer service organization and full spare parts inventory in every region support you 24/7, 365 days a year.
Extended warranty programs and complete service agreement offerings are available for the RE-CO2 320V2.
Tell us about your pelletizers and liquid CO₂ use. We will size the right recovery system and estimate your savings and payback.
