Cold Jet — Carbon Capture CB 17 Biogas CO₂ Capture & Liquefaction

For Large Biogas Plants

The Cold Jet CB 17 captures and liquefies the CO₂ from large biogas upgrading operations. It handles up to 850 Nm³/hr of off-gas and produces up to 3,710 lb (1,683 kg) per hour of food-grade liquid CO₂ — eliminating methane slip and unlocking new revenue.

Dimensions (L × W × H)
40 × 28 × 14.3 ft
Weight
44092 lb
Power Supply
3 × 400 V AC (50 Hz)

Request pricing

Select Package


Qty
1
Compare
  • Food-Grade Liquid CO₂
  • Natural R744 Refrigerant

Documents

Americas
At a Glance

Why Choose the CB 17 for a Large Biogas Upgrading Plant?

Large biomethane plants vent significant volumes of CO₂ that still carry residual methane. The CB 17 captures that off-gas directly after upgrading, purifies, compresses, liquefies, and distills it into high-purity liquid CO₂, and returns removed impurities to the plant. The result is zero methane slip, a lower CI score, and a steady supply of biogenic CO₂ to sell.

Dimensions (L × W × H)
40 × 28 × 14.3 ft
Weight
44092 lb
Dry Ice Output
3710 lb/h
Power Supply
3 × 400 V AC (50 Hz)

Standard capacity up to 1,683 kg/hr; platforms from 1,000 to 4,500 kg/hr are available on request.

Features

What Makes the CB 17 Stand Out?

Advanced CO₂ capture for the higher production capacities of larger biogas upgrading plants.

Render 600px

Interactive 3D

3D viewer coming soon

  1. Sustainability

    Zero Methane Slip

    A closed-loop design returns removed impurities to the biogas plant, so no methane escapes with the CO₂ stream.

    Lead Feature
  2. Performance

    Up to 1,683 kg/hr of Food-Grade LCO₂

    Liquefies up to 850 Nm³/hr of CO₂ gas from your upgrading off-gas into food-grade liquid CO₂.

  3. Quality

    Proprietary Distillation

    Compression, cooling, liquefaction, and a final distillation step deliver a high CO₂ recovery rate and food-grade purity.

  1. Revenue

    New Revenue Streams

    Sell high-purity biogenic liquid CO₂ into greenhouses, dry ice manufacturing, food and beverage, and emerging e-fuel markets.

  2. Carbon Intensity

    Lower CI Score

    Recovering methane and capturing CO₂ drastically reduces the carbon intensity score of your upgraded biogas.

  3. Sustainability

    Natural R744 Refrigerant

    A closed-loop liquefaction system uses natural CO₂ (R744) as refrigerant — no synthetic refrigerants.

  4. Efficiency

    180 kWh per Ton LCO₂

    Low energy consumption per ton of liquid CO₂, with an optional package that recovers energy set free during liquefaction.

  5. Operation

    Fully Autonomous, Variable Throughput

    Runs with minimal user intervention and easily handles variations in feed flow from the upgrading unit.

  6. Installation

    Compact, Modular & Containerized

    Containerized units install quickly with no extra building infrastructure and minimal changes to your site.

  7. Cost

    Oil-Free Reciprocating Pumps

    Oil-free piston reciprocating pumps lower maintenance costs.

  8. Scalability

    Configurable 1,000–4,500 kg/hr

    The CB platform can be configured from 2,204 up to 9,920 lb (1,000–4,500 kg) per hour on request.

  9. Support

    Engineering & Remote Support

    Includes client-side utilities, piping and electrical engineering support, preventive maintenance, and remote technical support.

Applications

Where Does CB 17 Liquid CO₂ Go?

Biogenic liquid CO₂ from your plant supplies established and emerging markets.

  • Operators at a biogas facility performing carbon capture and dry ice production

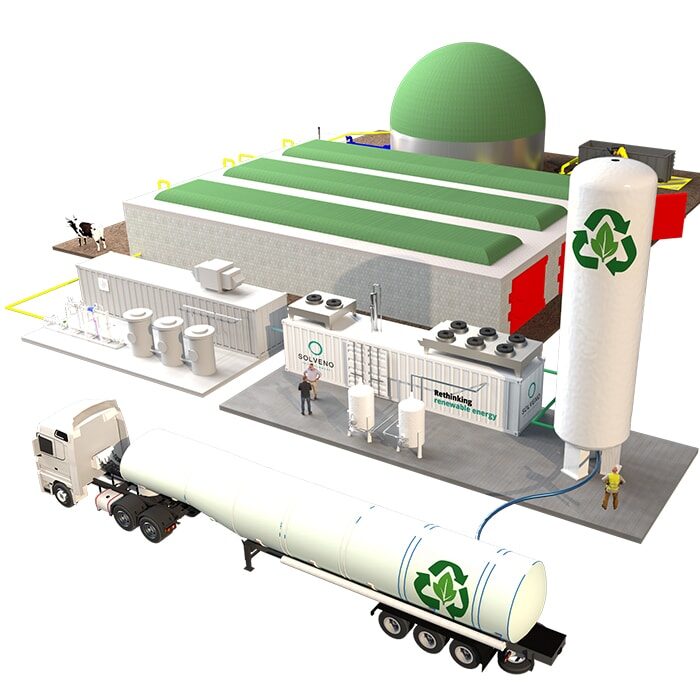

    Biogas Carbon Capture

    Biomethane plants vent the CO₂ separated during biogas upgrading, along with residual methane. Cold Jet CB systems capture that off-gas and purify, compress, and liquefy it into food-grade liquid CO₂, returning methane to the plant for zero methane slip and a lower CI score. The captured CO₂ becomes a new revenue stream, or feedstock for on-site dry ice.

Specifications

What Are the CB 17 Specifications?

Specs from the official CB 17 spec sheet. Use the toggle to switch between Imperial and Metric units.

Model: CB 17 — biogas CO₂ capture and liquefaction system, up to 850 Nm³/hr CO₂ gas and 1,683 kg/hr food-grade LCO₂
SpecificationImperial
Dimensions (L × W × H)40 × 28 × 14.3 ft
Weight44092 lb
Dry Ice Output3710 lb/h
Power Supply3 × 400 V AC (50 Hz)
Earthing SystemTN-S
Accessories

Which Accessories Fit the CB 17?

The Cold Jet CB 17 can be tailored with six options. A CO₂ Emissions Reporting Package documents CO₂ captured and saved for ESG reporting, a gas dryer controls moisture before liquefaction, and an Energy Efficiency Package cuts plant energy use by about 10%. Capacity can be increased from 1,000 up to 4,500 kg/hr, a Dry Ice Production Hub adds on-site biogenic dry ice, and a maintenance plan covers preventive inspections.

Accessories & Options

  • CO₂ Emissions Reporting Package (ESG)

    Measures input and output flows to report CO₂ emissions captured and saved

    CB 17

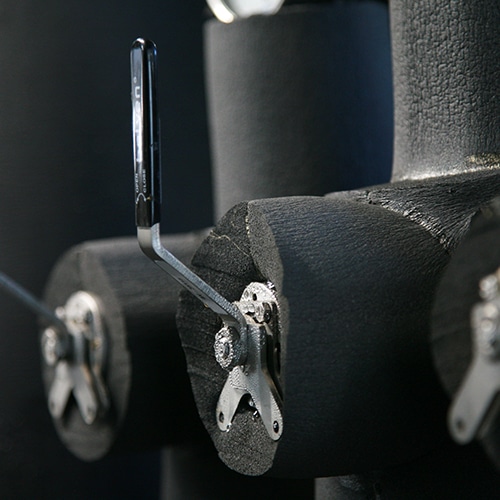

  • CO₂ Gas Dryer System

    Controls moisture / pressure dew point of CO₂ gas before liquefaction

    CB 17
  • Energy Efficiency Package

    Recovers energy set free during liquefaction — about 10% lower plant energy use

    CB 17
  • Increased Capacity

    Platform configured from 1,000 up to 4,500 kg/hr on request

    CB 17
  • Dry Ice Production Hub

    Add on-site dry ice production to sell biogenic dry ice

    CB 17
  • Maintenance Plan

    Preventive maintenance and inspections

    CB 17

* Contact Cold Jet for pricing and help sizing your recovery installation.

24/7 Technical Support

Cold Jet provides client-side utilities, piping, and electrical engineering support, preventive maintenance, and remote technical support — backed by more than 70 people in customer service and full spare parts inventory in every region, 24/7, 365 days a year.

Warranty & Support

What Warranty and Support Does the CB 17 Include?

Extended warranty programs and complete service agreement offerings are available for the CB 17.

View full warranty & support details
FAQ

Have Questions About the CB 17?

Ready to Evaluate?

Ready to Turn Your Biogas CO₂ Into Revenue?

Tell us your upgrading off-gas flow and biogas composition. Our engineers will size the CB system, support your utilities and piping, and help identify buyers for your CO₂.
