• Dry Ice Dosing & Bagging System - front view
  • Dry Ice Dosing & Bagging System - rotary table view
  • Dry Ice Dosing & Bagging System - top view

The Cold Jet Difference:

The Dry Ice Dosing & Bagging System Advantage

  • Beckhoff Industrial HMI

    Intuitive control system offering permission based accessibility and programming for automation.

  • Automatic Extruder Plate Changer

    Automatically switch between dry ice pellet/nugget sizes to minimize downtime and waste.

  • Sureflow Dosing

    Thumpers and vibrators provide reliable dosing and clog-free operation.

  • Cold Jet CONNECT®

    Remotely monitor, diagnose and implement corrective action from any location.

Dry Ice Dosing & Bagging Features

  • Intuitive controls for easy operation
  • Equipped with Cold Jet CONNECT® for remote monitoring, control, support, and analytics.
  • Accepts 3mm, 6mm, 10mm, and 16mm dry ice pellets/nuggets
  • Automatic extruder plate changer
  • 15″ color touchscreen Beckhoff Industrial HMI control
  • Machine parts protected by a moisture-free enclosure reduces the noise level to below 85db(A)
  • Sub Cooling technology minimizes CO2 waste

Dry Ice Dosing & Bagging System Specifications

PR350H | PR750H

  • PR350H Dimensions 87" x 67" x 112" (2200 x 1700 x 2850 mm)
  • PR350H Weight 4,170 lb (1,895 kg)
  • PR350H Footprint 40 sq. ft. (3.7 sq. m)
  • PR350H Rated Power 9.5 HP (7.0kW)
  • PR350H Rated Output up to 772 lb/hr (350 kg/hr)
  • PR350H Hopper Capacity 110 lb (50 kg)
  • PR350H Maximum Dosing Speed/Minute 37 lb/min (17 kg/min)
  • PR350H Min/Max Dose 1 lb / 88lb (0.5 kg / 40kg)
  • PR350H Dosing Accuracy +/- 5%
  • Output Size 3mm, 6mm, 10mm, 16mm (1/8", 1/4", 3/8", 5/8")
  • Inlet Liquid CO2 Pressure 189-262 psi (13-18 bar)
  • Compressed Air Supply 116-145 psi (8-10 bar)
  • Noise Level <85 dB(A)
  • PR350H Part # 90627 / 90626 / 90628 / 2A0512 / 2A0513
  • PR750H Dimensions 87" x 86" x 112" (2200 x 2180 x 2850 mm)
  • PR750H Weight 4,635 lb (2,110 kg)
  • PR750H Footprint 52 sq. ft. (4.8 sq. m)
  • PR750H Rated Power 17 HP (12.5 kW)
  • PR750H Rated Output up to 1,653 lb/hr (750 kg/hr)
  • PR750H Hopper Capacity 242 lb (110 kg)
  • PR750H Maximum Dosing Speed/Minute 81 lb/min (37 kg/min)
  • PR750H Min/Max Dose 2 lb / 200lb (1 kg / 90kg)
  • PR750H Dosing Accuracy +/- 7%
  • Output Size 3mm, 6mm, 10mm, 16mm (1/8", 1/4", 3/8", 5/8")
  • Inlet Liquid CO2 Pressure 189-262 psi (13-18 bar)
  • Compressed Air Supply 116-145 psi (8-10 bar)
  • Noise Level <85 dB(A)
  • PR750H Part # 90636 / 90637 / 2A0510 / 2A0511

  • Extruder Plates

    Allow your dry ice production equipment to meet all your production needs with the proper pellet or nugget die plate. Cold Jet's pelletizers can be properly outfitted to ensure optimal performance and reliability.

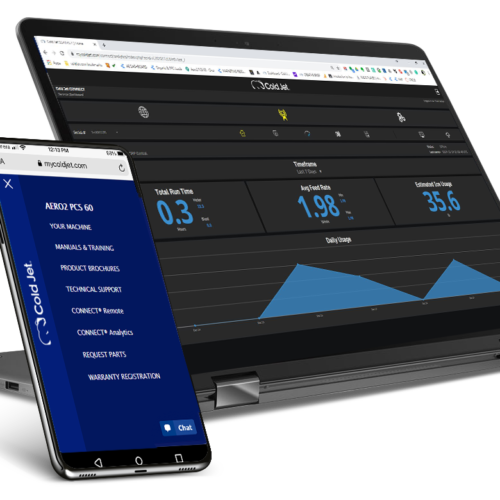

  • Cold Jet CONNECT®

    Remote monitoring, analytics, and support platform to get the most out of your pelletizer.

    Cold Jet CONNECT®

Dry Ice Dosing & Bagging System Upgrades

Customize the Dry Ice Dosing & Bagging System for your needs

  • Extruder Plates

    Allow your dry ice production equipment to meet all your production needs with the proper pellet or nugget die plate. Cold Jet's pelletizers can be properly outfitted to ensure optimal performance and reliability.

  • Maintenance Plan

    Find a maintenance plan or schedule a safety and preventative maintenance inspection.

    Preventative Maintenance
