The RE-CO₂ 320^V2

CARBON CAPTURE in Your Dry Ice Production.

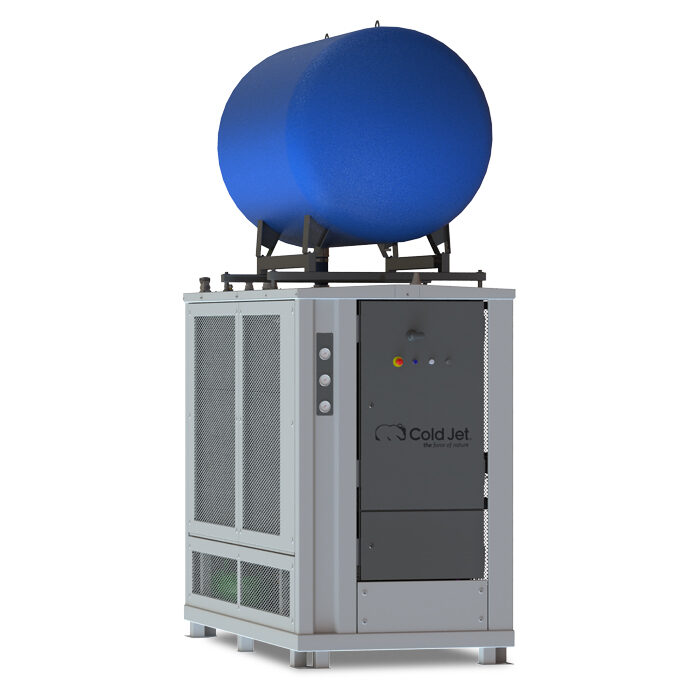

The RE-CO₂ 320^V2 is the most intelligent, scalable, and sustainable CO₂ recovery system of its size available.

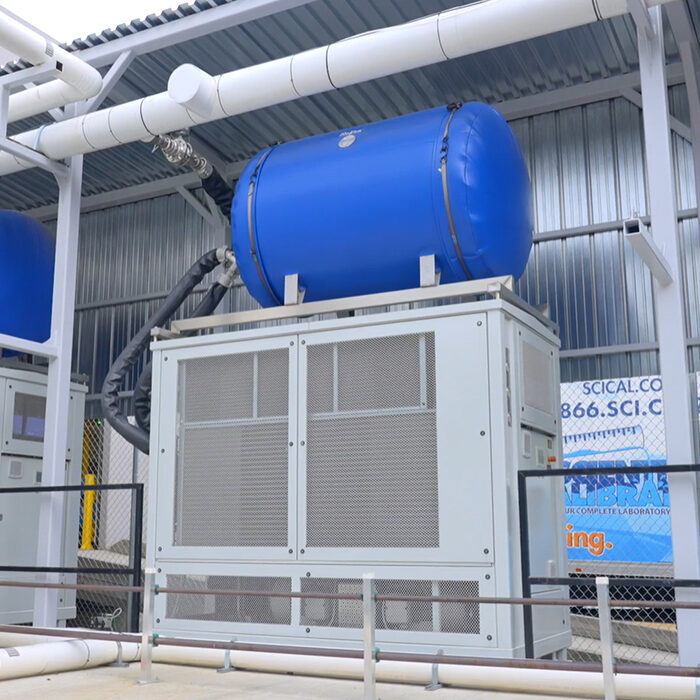

This compact unit fits seamlessly into any dry ice production facility. It captures CO₂ gas emitted during standard dry ice production, converts it back into liquid form, and recycles it to create more dry ice.

Cold Jet’s R&D team has revolutionized small-scale recovery systems. Version 2 enhances the original design with new features from our engineering team:

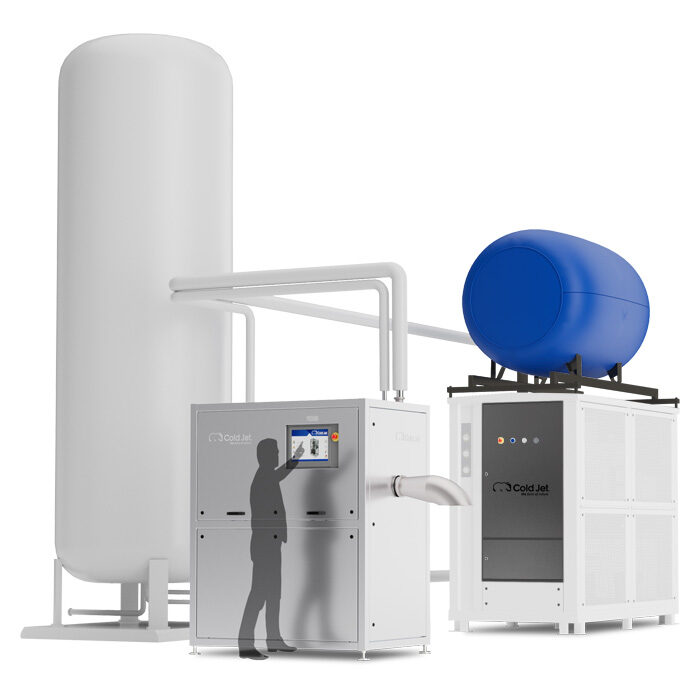

Now, your Cold Jet pelletizer and the RE-CO2 320^V2 communicate seamlessly. You can start and operate the recovery system directly from your pelletizer’s control panel.

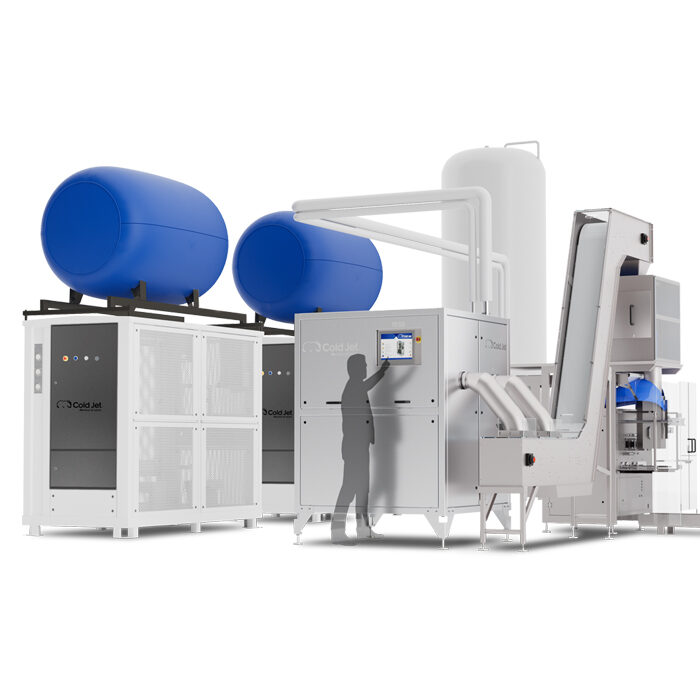

For large-scale dry ice production with multiple RE-CO2 320^V2 units, our intelligent system optimizes CO₂ gas flow to maximize efficiency.

Experience peak performance across connections, electrical systems, motors, cooling, oil management, and buffer tank. Discover all the benefits of this smart, reliable, and eco-friendly CO₂ recovery system.

Downloads:

RE-CO₂ 320^V2 Spec Sheet

Request Pricing

The Cold Jet Difference:

The RE-CO₂ 320^V2 Advantage

An Extra Layer of Sustainability

The RE-CO₂ 320^V2 can capture your operation's waste carbon dioxide, transforming it into a valuable resource for your dry ice production.
Boost Production Efficiency

Designed to minimize liquid CO₂ waste, the RE-CO₂ 320^V2 significantly improves the efficiency of your dry ice production process.
Dramatic Savings on Liquid CO2 Costs

Double your CO₂ investment! Our recovery system can reduce your annual liquid CO₂ costs by up to 40%. Reinvest these savings to grow your business.
Produce More Dry Ice with Less

Increase your dry ice output by up to 70% without consuming extra liquid CO₂. The RE-CO₂ 320^V2 delivers exceptional performance.
Smart, Scalable, and Simple

Our plug-and-play system is easily controlled from your pelletizer's HMI screen. The modular design of the RE-CO₂ 320^V2 makes it adaptable for operations of any size. Focus on your business while our system optimizes your CO₂ usage.
Compact and Efficient

The Cold Jet CO₂ reclaimer is exceptionally compact compared to other options on the market. It's a custom-engineered solution tailored to your specific needs.

Features
Specifications
Accessories

RE-CO₂ 320^V2 New Features

Redesigned buffer tank frame and cover for optimal CO₂ gas flow
Enhanced connections for valve control and CO₂ handling
Electrical cabinet with superheat controller
24 V DC coils
Additional temperature sensors
Convenient access plugs for warm weather conditions

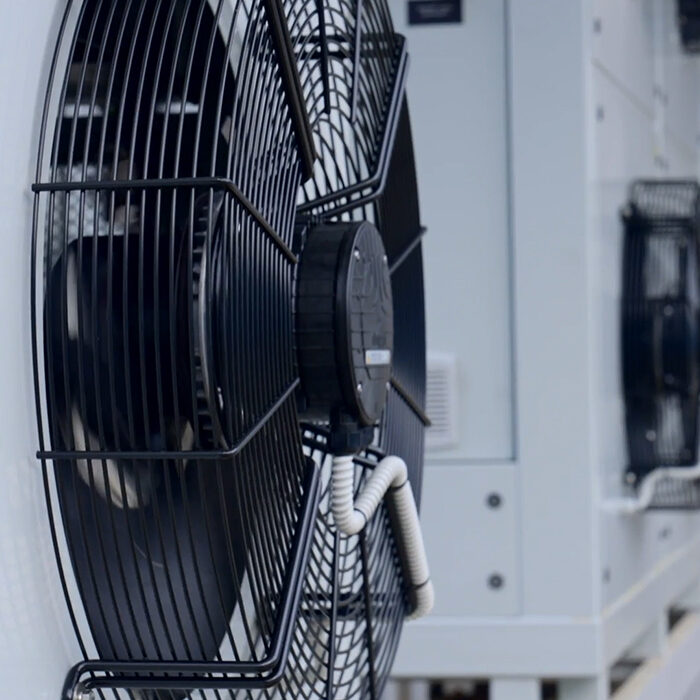

Durable, high-quality cooling fans
Claw coupling motors
Liquid receiver for refrigerant with added bypass valve for compressor cooling
Upgraded two-stage oil separator
Oil regulator

RE-CO₂ 320^V2 Specifications

Liquefaction Capacity Up to 705.4 lbs/hr (320 kg/hr)
Dimensions (L x W x H) 107 x 52 x 147.7 in (2718 x 1320 x 3751 mm)

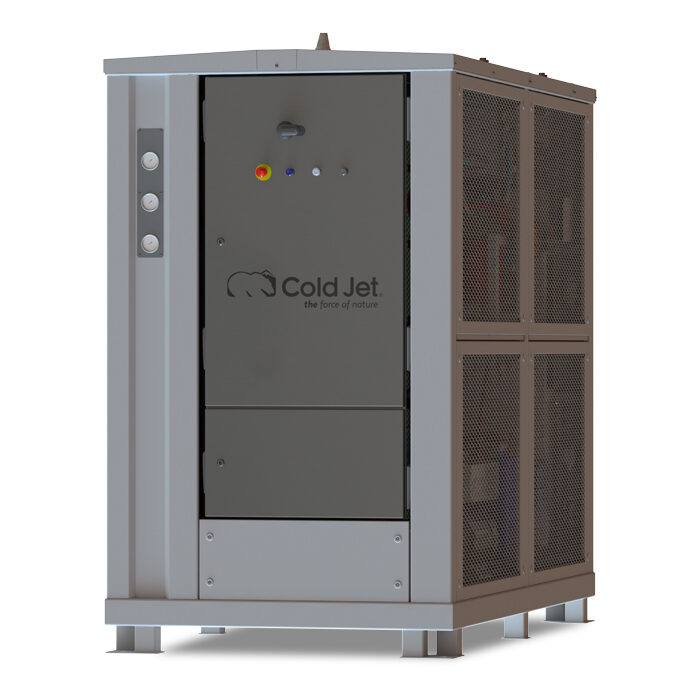

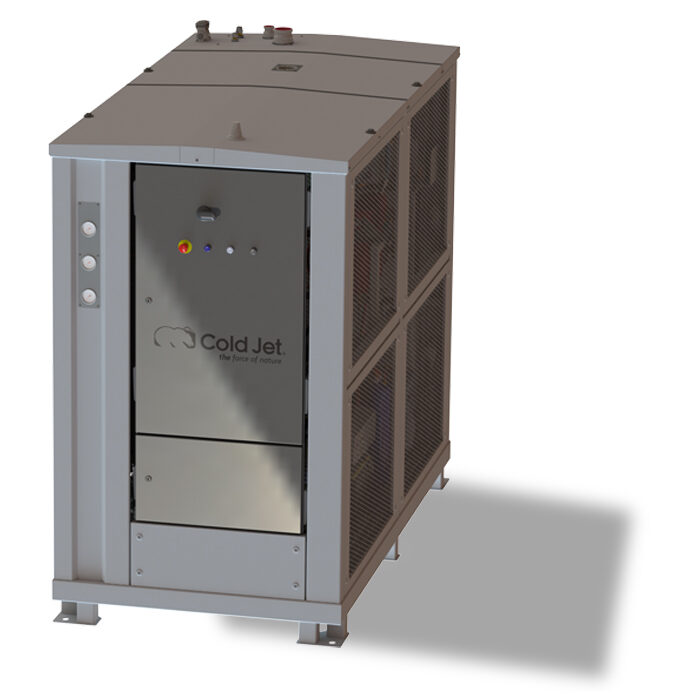

Height Without Buffer Tank 89 in (2259 mm)
Unit Weight* 4795 lbs (2175 kg) * Without Buffer Tank
Buffer Tank Weight 717 lbs (325 kg)
Unit Shipping Weight 5864 lbs (2660 kg)
Buffer Tank Shipping Weight 1292 lbs (586 kg)
Voltage & Frequency 440 - 480 V AC, 60 Hz or 400 V AC, 50 Hz
Power 50 kWh
Current 85A
Power Connection 85A / 3P + GND/PE
Refrigerant POE32 oil
Food Grade Compressor Oil Type PAO68 oil (Food Grade)
Min to Max Temperature 5°C (41°F) to 30°C (86°F)
Noise Level 85 dB. Max

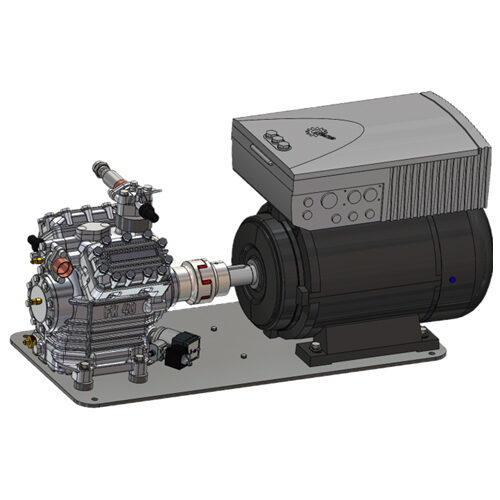

Spare Parts Kit

Optimize your preventive maintenance with a spare parts kit.

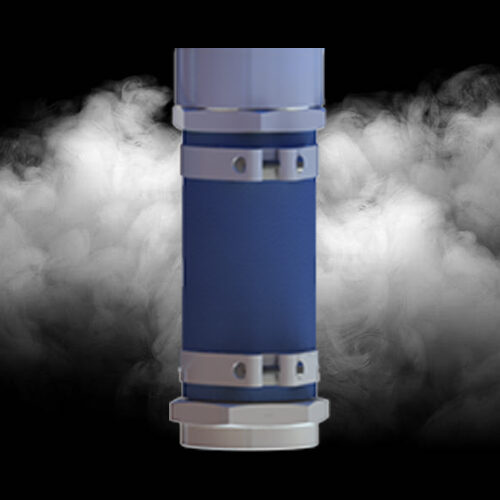

External Hose Connection

Hoses to transport CO2 gas to your recovery system.

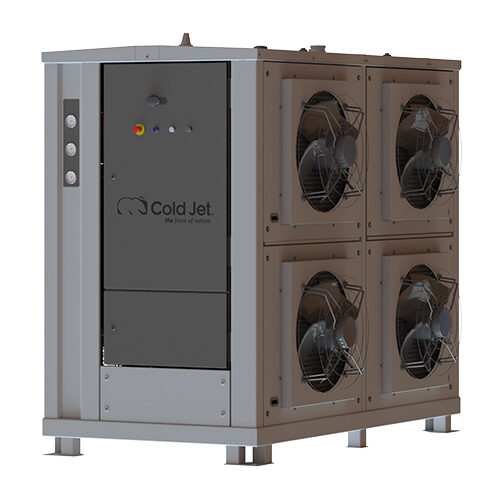

Warm Weather Kit

Our Warm Weather kit ensures optimal performance of your RE-CO₂ 320^V2 in a high-temperature environment.
Control and HMI

Add a Line Controller and HMI.

RE-CO₂ 320^V2 Upgrades

Customize the RE-CO₂ 320^V2 for your needs

Additional Accessories

Enhance your cleaning experience with accessories that make Recovering CO2 better.
Maintenance Plan

Find a maintenance plan or schedule a safety and preventative maintenance inspection.
